Bypass Module is for those cars with chip key!
if you want to buy our keyless entry&push start system,please confirm if you need bypass module!
new bypass :

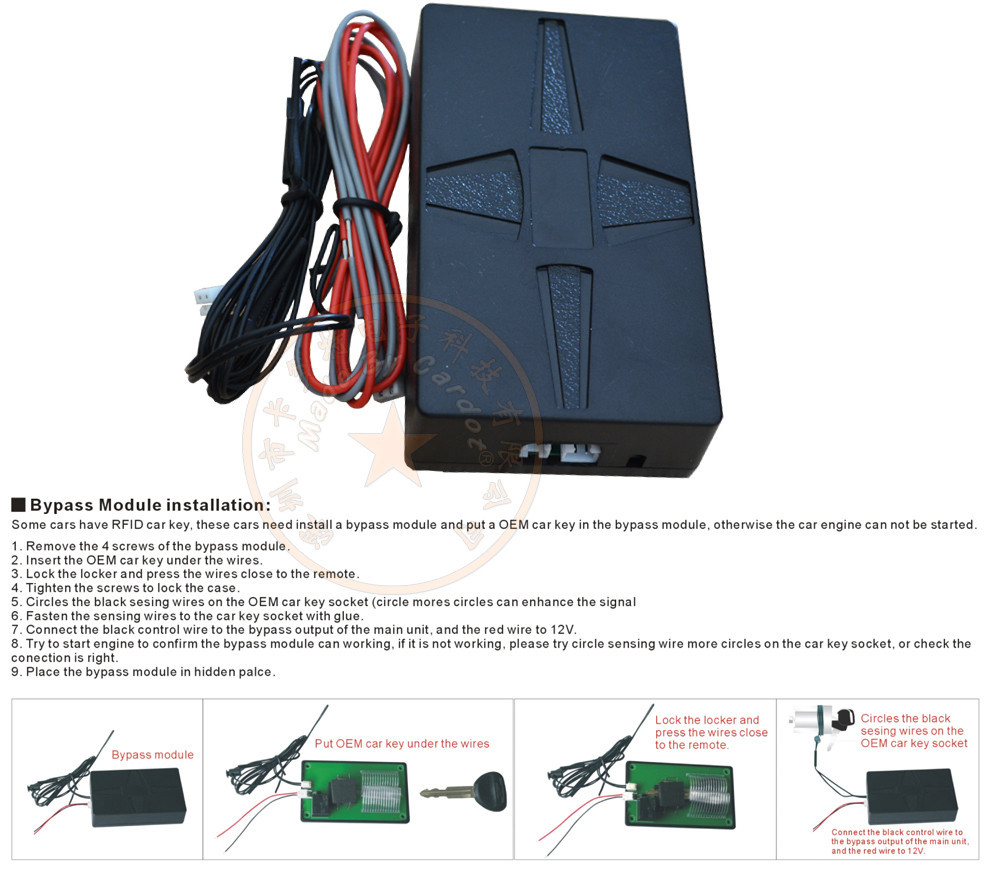

bypass module wire diagram:
Some cars have RFID car key(chip key),if you want to remote start car,you need to have a bypass module,otherwise the car engine can not started.
1)Remove the key screws of bypass module control box,open the control box;

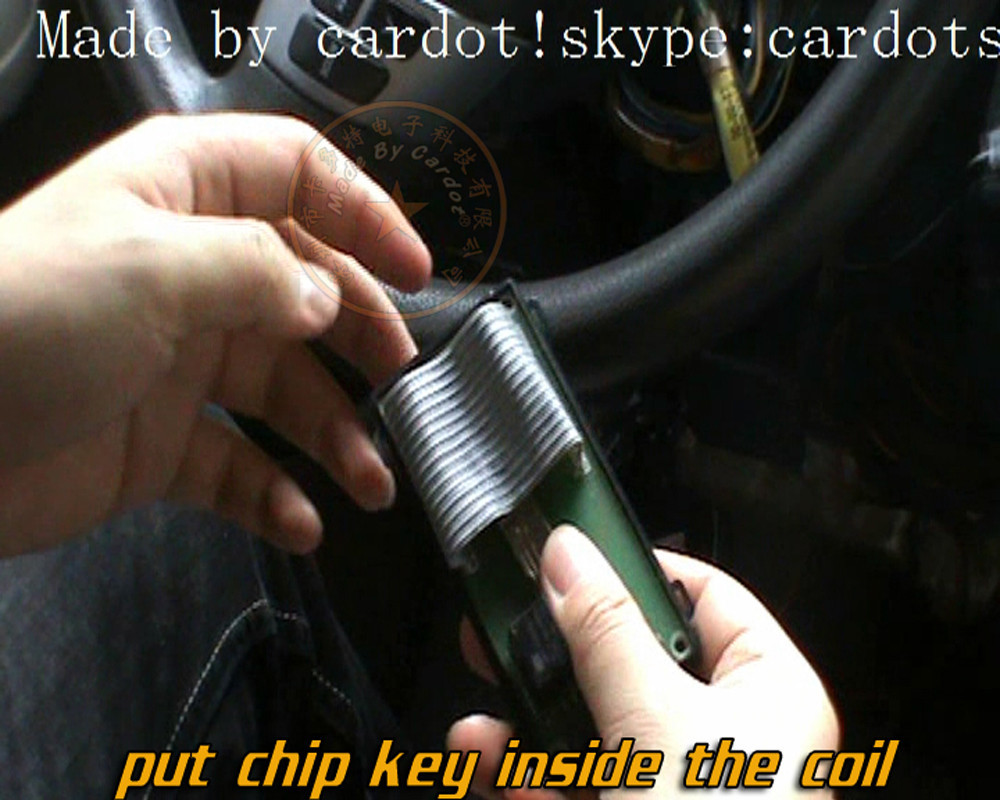

2)Insert the OEM car key or key PCB or Key chip under the wire;
3)Lock the locker and press the wires close to the remote key,or key PCB or Key chip;
4)Tighten the screws and lock the case;

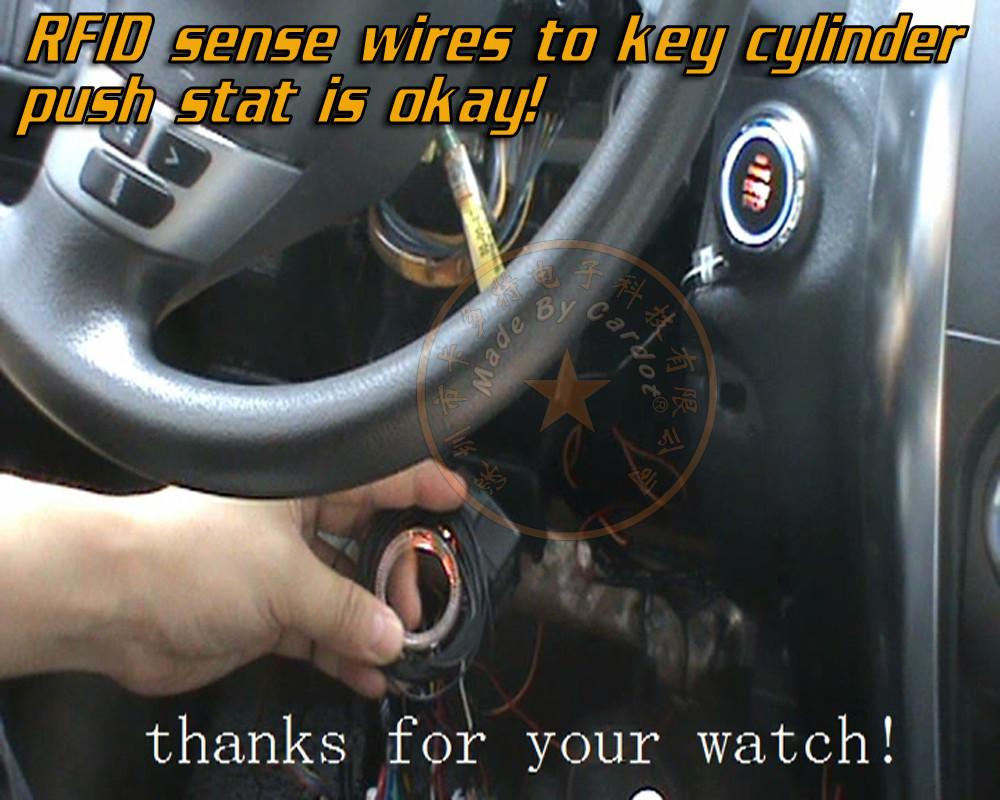

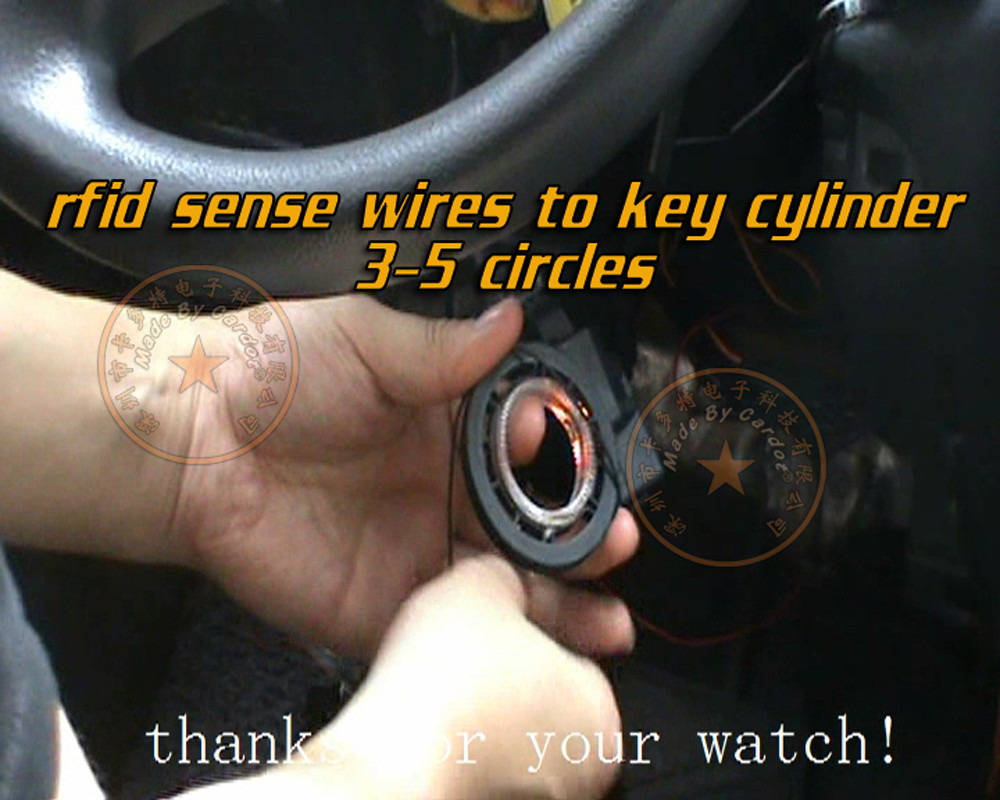

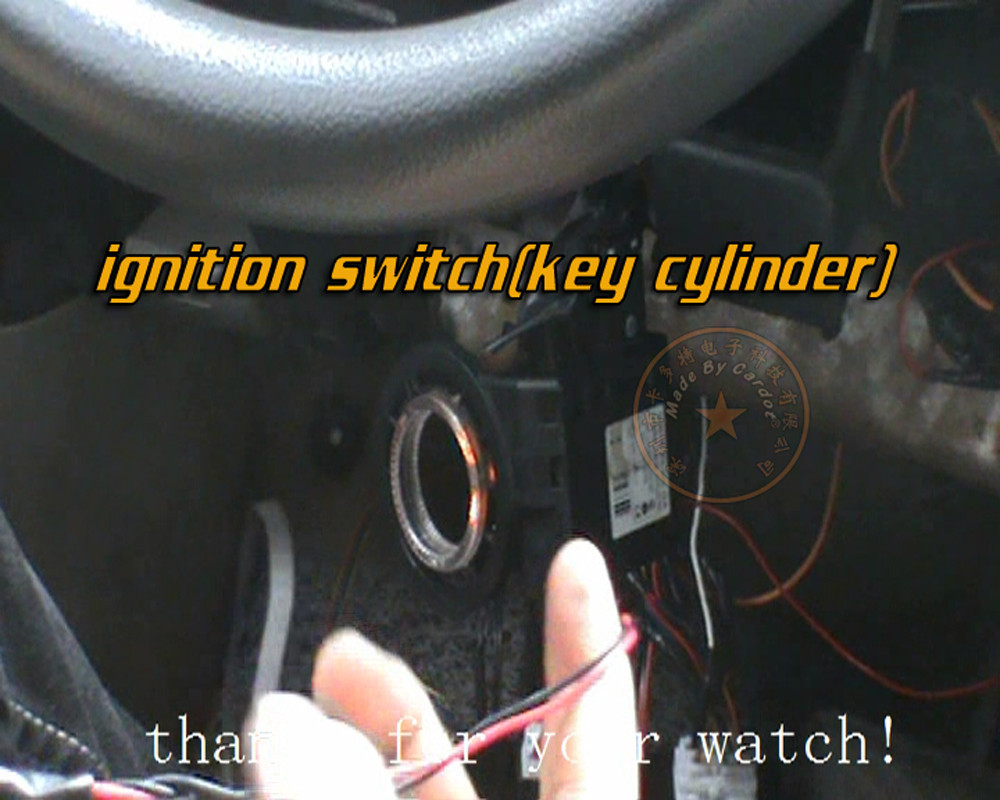

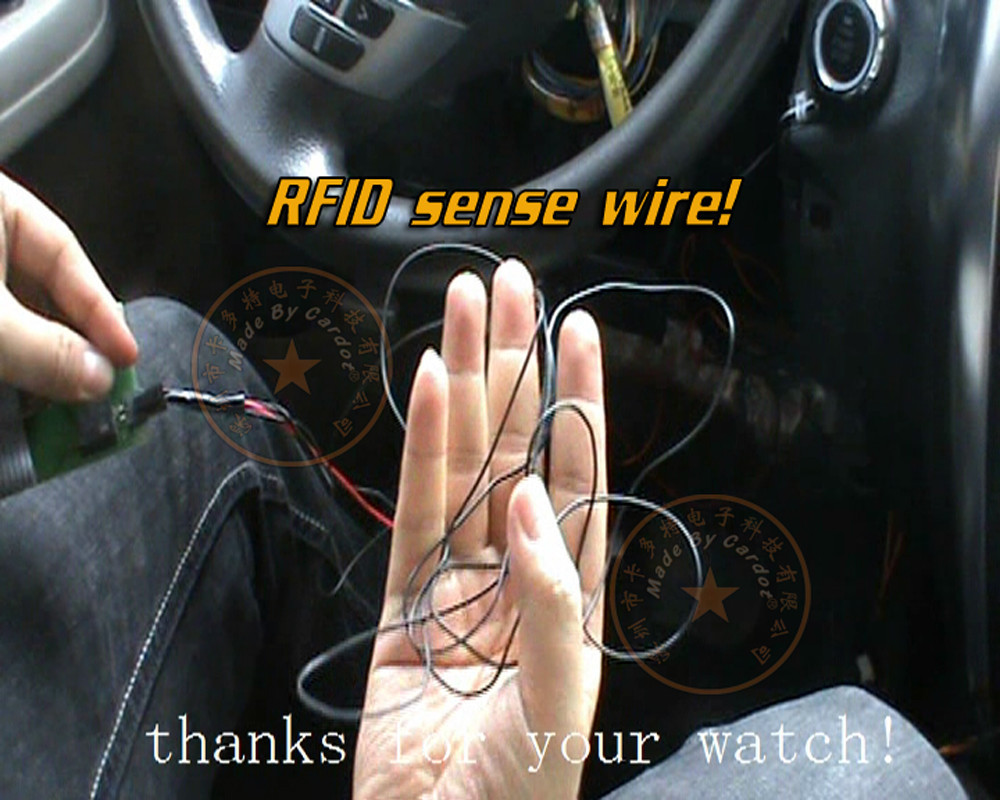

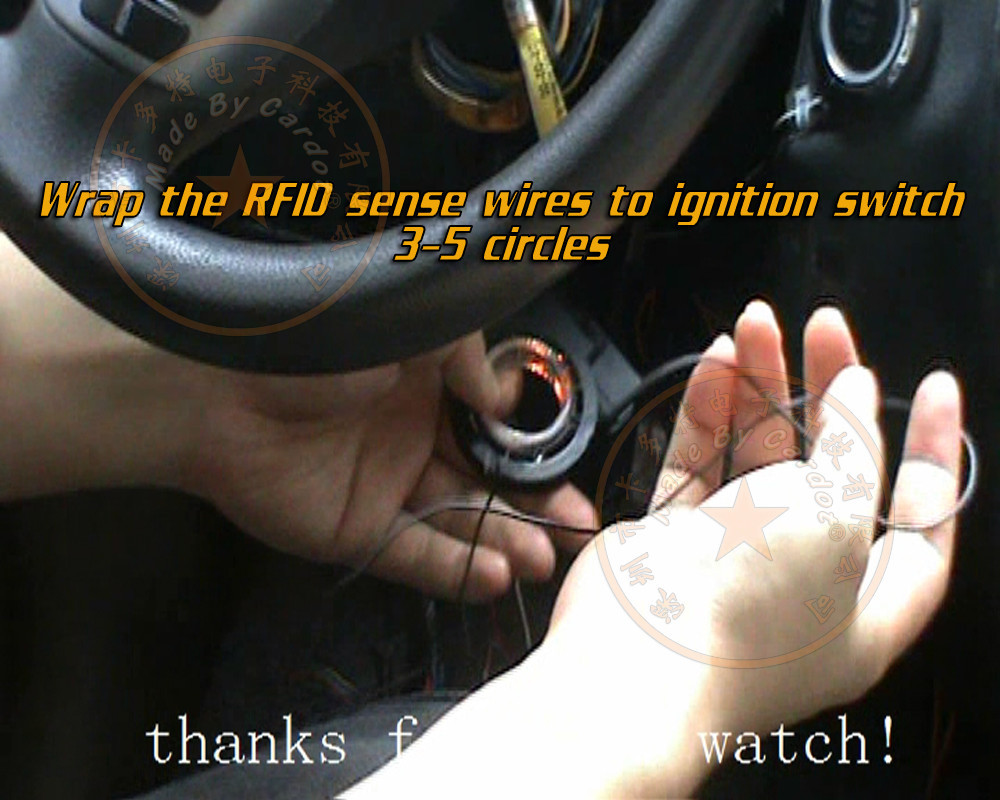

5)Circles the sensing the wire on the OEM car key socker(circle more circles can enhance the
6)Fasten the sensing wires to the car key socket with glue;

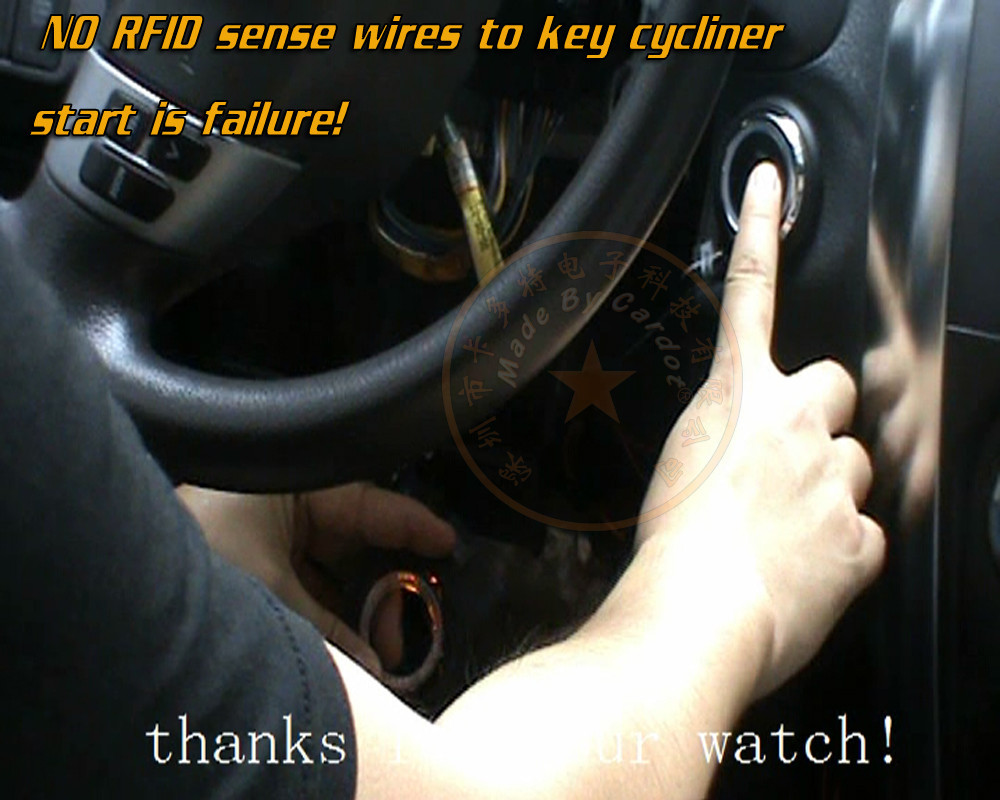

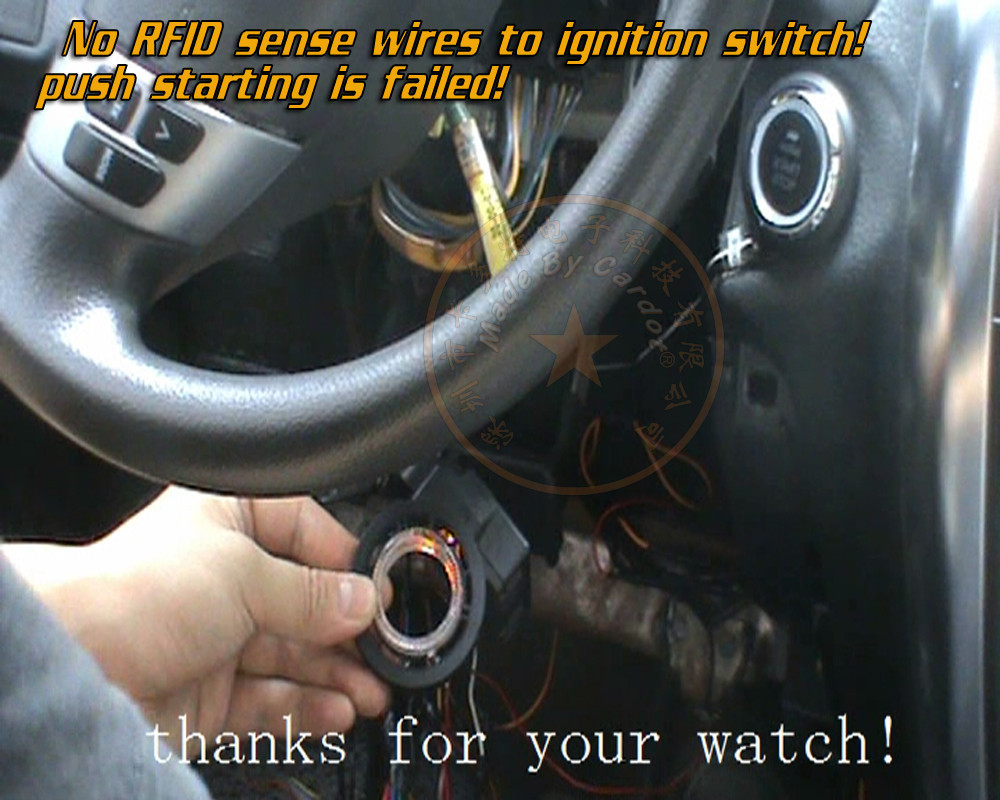

7)Try to start car engine to confirm the bypass module working,if it is not working,please
try circle sensing wire more circles on the car key socket,or check the connection if it is
8)Place the bypass module in a hidden place.
Product installation demo:
Cardot company and certificate:
